MM32G0140

  • Overview
  • Document
  • Tools & Software
  • Target Application
  • Selection
  • Product Information

Product Description

This device is a 32-bit microcontroller based on the high-performance Arm® Cortex-M0 core, operating at a frequency of up to 72MHz, with built-in high-speed memory, an extensive range of enhanced I/O ports and peripherals.
- 64KB Flash, 8KB SRAM

- One 12-bit ADC and one analog comparator

- One 16-bit advanced timer, one 32-bit general-purpose timer, one 16-bit general-purpose timer and three 16-bit basic timers

- Three UART interfaces, two SPI interfaces and one I2C interface

- One FlexCAN interface

- Working voltage: 2.0V~5.5V

- Working temperature range (ambient temperature): -40℃ to 105℃ extendable industrial grade (V is the suffix)

- Provide three package types: LQFP32, QFN32, QFN28 and TSSOP20


It is suitable for a wide range of applications:

- Industrial control

- Digital power

- New energy photovoltaic

- Motor control

- Smart home appliance

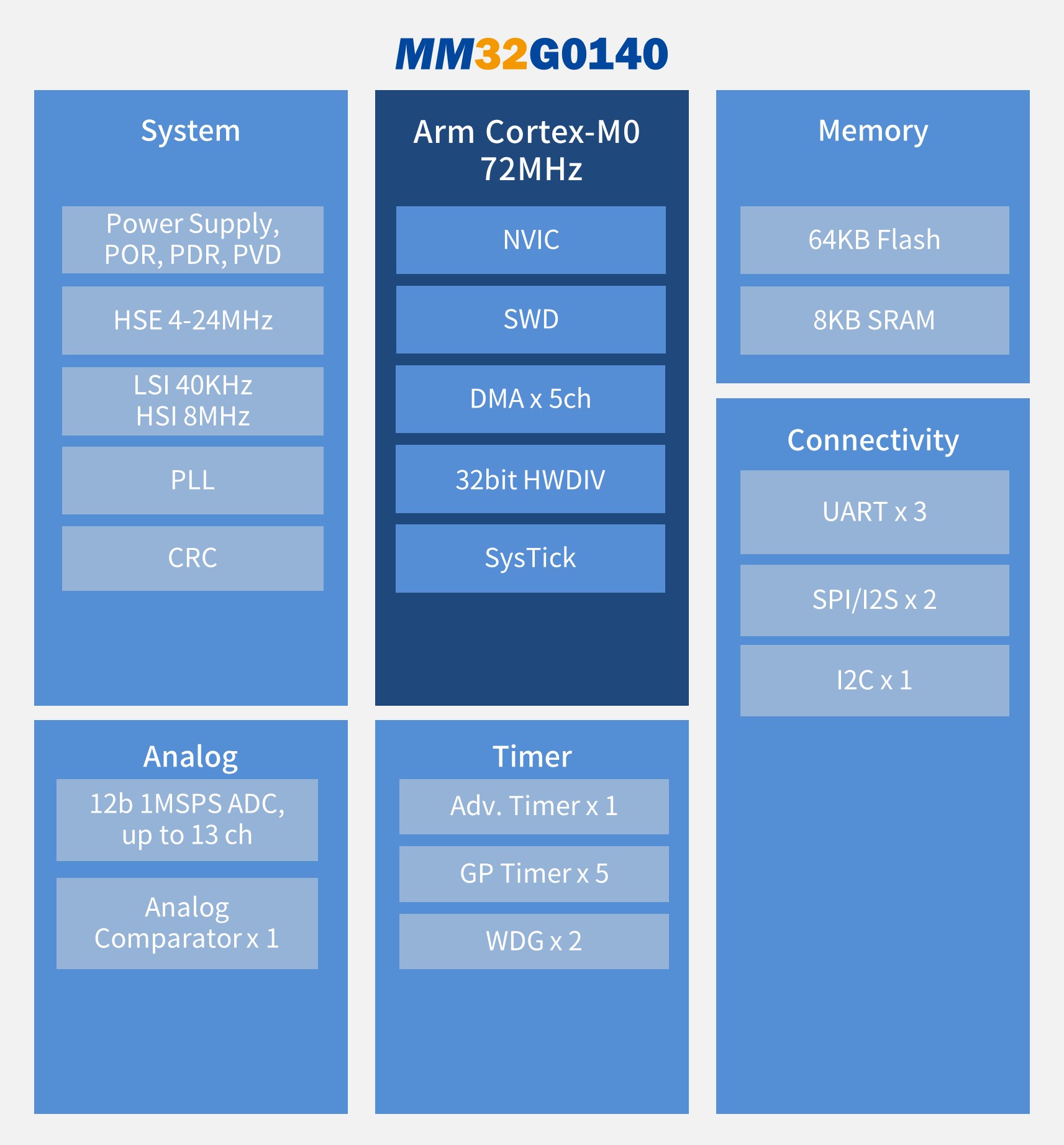

Product Features

Related Videos

    No Details

Leaflet

  • MM32G01xx Leaflet (Chinese)
    Chinese 1.0 PDF 2.91MB 2023.02.14

    Description： Introduct the main features, functions, advantages, ordering information and development tools support of related products or series.

  • MM32G01xx Leaflet (English)
    English 1.0 PDF 2.83MB 2023.02.14

    Description： Introduct the main features, functions, advantages, ordering information and development tools support of related products or series.

Data Sheet

  • MM32G0140 Datasheet (Chinese)
    Chinese 0.8 PDF 1.84MB 2023.10.31

    Description： Supports MM32G0140 series, provide detailed specifications, pin definition, electrical characteristics and packaging information.

  • MM32G0140 Datasheet (English)
    English 0.8 PDF 1.68MB 2023.10.31

    Description： Supports MM32G0140 series, provide detailed specifications, pin definition, electrical characteristics and packaging information.

User Manual

  • MM32G0140 User Manual (Chinese)
    Chinese 0.6 PDF 32.38MB 2024.03.15

    Description： Supports MM32G0140 series, providing a complete system architecture, memory and all peripheral details and register descriptions.

  • MM32G0140 User Manual (English)
    English 0.6 PDF 25.00MB 2024.03.15

    Description： Supports MM32G0140 series, providing a complete system architecture, memory and all peripheral details and register descriptions.

Errata Sheet

  • MM32G0140 Errata Sheet (English)
    Chinese 0.5 PDF 271.13KB 2023.02.21

    Description： Supports the MM32G0140 series, list the known issues and provide recommended solutions.

  • MM32G0140 Errata Sheet (Chinese)
    English 0.5 PDF 153.88KB 2023.02.21

    Description： Supports the MM32G0140 series, list the known issues and provide recommended solutions.

Application Note

Lib Samples

  • MM32G Series PCB&SCH library for Altium
    English 1.00 ZIP 183.68KB 2023.12.25

    Description： MM32G Series PCB&SCH library for Altium

  • MM32G0140 Lib Samples
    English 0.9.4 ZIP 4.80MB 2023.09.04

    Description： Supports MM32G0140 and the Cortex-M Microcontroller Software Interface Standard (CMSIS), MM32 Standard Peripheral Library, IAR and MDK development, and offer rich reference samples for library function and register operations.

Recommended Tools

  • MM32-LINK MINI Emulator

    Support MM32 MCU SWD programming and debugging, compatible with CMSIS-DAP debugging channel

    Support CDC virtual serial port, baud rate support 9600 / 14400 / 19200 / 28800 / 38400 / 56000 / 57600 / 115200 etc

    Support firmware update and function configuration via U-Disk

    Driver-free installation, supports Windows and Linux operating systems

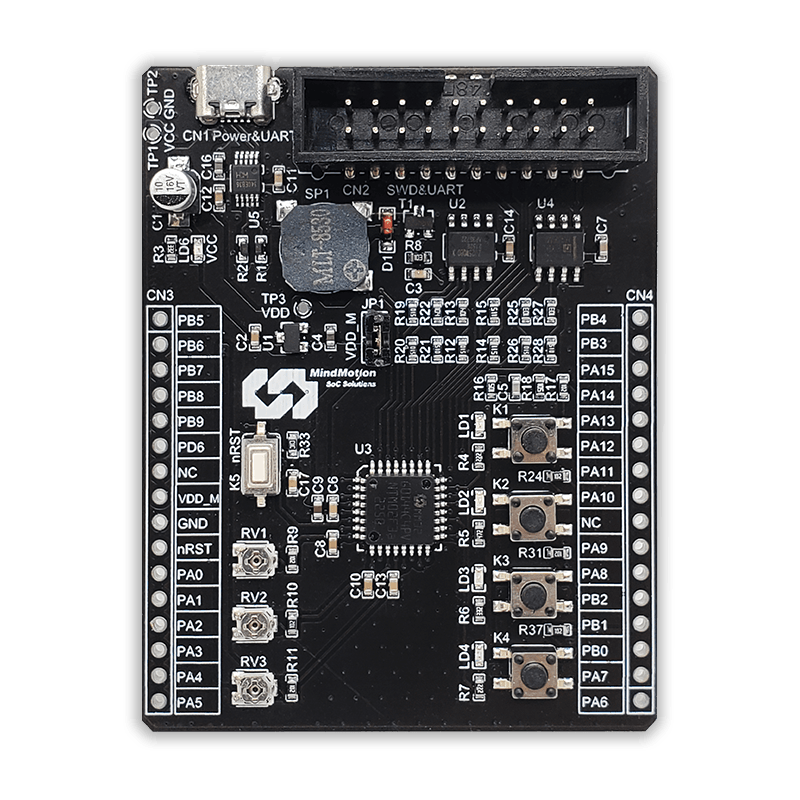

  • MiniBoard (MM32G0144C4PV)

    On-board main control: MM32G0144C4PV
    - 32bit Arm Cortex-M0
    - 64KB Flash, 8KB SRAM
    - LQFP32

    On-board resources:
    - 4 user press keys and 1 reset key
    - 4 user LEDs
    - 3 adjustable potentiometers
    - PWM buzzer
    - 8M SPI Flash
    - 2K EEPROM

    On-board interface:
    - 20PIN SWD adjustable interface
    - Micro USB (USB-UART CH340)

    Power supply:
    - USB TYPE-C

Recommended Software

  • IAR Pack

    When using IAR integrated development environment to develop MM32 microcontroller, you need to install this support package, so that you can select MM32 chip model, debug and download in IAR.

  • KEIL Pack

    When using KEIL integrated development environment to develop MM32 microcontroller, you need to install this support package, so that you can select MM32 chip model, debug and download in KEIL.

  • J-Link Pack

    When using J-Link debuggerto debug MM32 microcontroller or using J-Flash to make programming, this supportpackage needs to be installed to realize the selection of MM32 device in J-Flash; When J-Li...
See More

Target Application

    No Details

Selection

Buy

Part No.

Core

Max Speed (MHz)

Flash (KB)

RAM (KB)

I/O#

Advanced TMR

GP TMR

UART

LPUART

I²C

SPI

USB 2.0 FS

CAN 2.0B

Ethernet

ADC (1Msps, 12bit)

ADC (3Msps, 12bit)

DAC (12bit)

ACMP

OpAmp

Pin Counts

Package

Package Size

Operation Temp

样片申请
Agent Channel Link
MM32G0144C1TV
M0
72
64
8
18
1
5
3
-
1
1
-
1
-
12ch
-
-
1
-
20
TSSOP
6.5x4.4
-40~105C
样片申请
Agent Channel Link
MM32G0144C3NV
M0
72
64
8
26
1
5
3
-
1
1
-
1
-
14ch
-
-
1
-
28
QFN
4x4
-40~105C
样片申请
Agent Channel Link
MM32G0144C4PV
M0
72
64
8
30
1
5
3
-
1
2
-
1
-
14ch
-
-
1
-
32
LQFP
7x7
-40~105C
样片申请
Agent Channel Link
MM32G0144C4QV
M0
72
64
8
30
1
5
3
-
1
2
-
1
-
14ch
-
-
1
-
32
QFN
5x5
-40~105C

Sample Application

Customer Related Information

Sample Related Information
Project Related Information

Agent Related Information

We offer the following online ordering options

MM32F0010

Home > 产品 > MM32F > MM32F Value Line > MM32F0010

Dealer
Stock*
Unit Price
Quantity
1548
$5.25
50
Standard global delivery $4.99
Add To Cart
  • Americas (inventory)
  • EMEA（inventory）
  • Asia（inventory）
  • Japan（inventory）
Dealer
Stock*
1548
Order Now
1548
Order Now
1548
Order Now
1548
Order Now
* The price may change at any time

Product Information

Part No.

Packing

Package Type Package Drawing

MOQ
REACH Declaration
ROHS Declaration
ROHS Report
MSL
Peak Package Body Temperature
MM32G0144C1TV
Tube
14400
3
260℃
MM32G0144C3NV
3
260℃
MM32G0144C4PV
Tray
2500
3
260℃
MM32G0144C4QV
3
260℃
