Home / Products / MM32 Family / Pre-Driver MCU

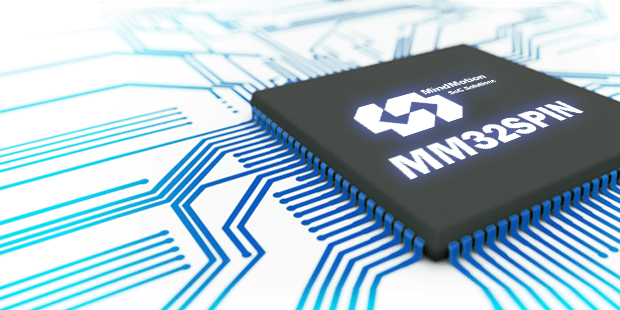

Pre-Driver MCU

Pre-driver MCU integrates a pre-driver internally and supports up to 200V voltage

- Equip with Arm® Cortex-M0 core

- Integrate digital communication interfaces such as UART, I2C and SPI

- Internally Integrate LDO, OPAMP, COMP, high-speed ADC and motor-specific PWM module

  • MM32SPIN030C

  • MM32SPIN060G

  • MM32SPIN080C

  • MM32SPIN160C

  • MM32SPIN560C

  • MM32SPIN580C

  • MM32SPIN040C

  • MM32SPIN360C

  • MM32SPIN320B

  • MM32SPIN380C

  • MM32SPIN120B

Part No. Flash (KB) RAM (KB) UART I2C SPI ADC (12bit) ACMP OpAmp Driver MOSFET Voltage Package
MM32SPIN030C 32 4 Support 1 2 2 3phase - 40V TSSOP28
MM32SPIN040C 16 2 Support 1 - 2 3phase - 40V TSSOP28
MM32SPIN080C 32 4 Support 1 2 2 3phase - 200V QFN48
MM32SPIN560C 128 8 Support 2 3 3 3phase - 60V QFN48
MM32SPIN580C 128 8 Support 2 3 3 3phase - 200V QFN48
MM32SPIN160C 32 4 Support 1 1 - 3phase - 80V QFN32
MM32SPIN360C 128 12 Support 1 3 3 3phase - 80V QFN32
MM32SPIN320B 128 12 Support 1 2 1 2phase - 30V QFN32
MM32SPIN380C 128 12 Support 1 3 3 3phase - 200V QFN32
MM32SPIN120B 32 4 Support 1 1 - 2phase - 30V QFN32
