MM32SPIN023C

  • Overview
  • Document
  • Tools & Software
  • Target Application
  • Selection
  • Product Information

Product Description

MM32SPIN023C is a high-performance single-motor control SOC product from MindMotion’s MindSPIN family. It uses the Cortex-M0 core and integrates the dedicated analog peripherals required for motion control, including 12-bit high-precision ADC, 2-way analog comparator COMP, 2-way operational amplifier OPAMP and power MOSFETs three-phase drive circuit. It is also equipped with dedicated resources, such as MC-TIM, hardware divider HW-Div and DMA controller as well as basic resources, including 32KB Flash, 4KB SRAM, 14 GPIOs and 1 LDO.

- Memory and computing resources: 32KB Flash, 4KB SRAM and maximum main frequency 60MHz

- 7 timer resources: one 16-bit advanced timer, one 32-bit general-purpose timer, three basic timers, one 12-bit IWDG and one 24-bit Systick

- Support 2-channel DMA

- Hardware Divider HW-Div

- One 12-bit analog-to-digital converter ADC, 9 channels supported and sampling rate 1Msps

- Designed for motor applications with built-in 2 comparators, 2 rail-to-rail operational amplifiers, and 6 integrated MOSFETs; capable of sustaining a continuous driving current of up to 2A

- Support UART/SPI communication

- Support 6.5-18V power supply

- Operating ambient temperature -40℃~105℃

- Provide QFN32 package type


Suitable for a wide range of applications:

- Small draught fan

- Small pump

- Refrigerator draught fan

- Servo motor

- Camera stabilizer



Product Features

Related Videos

    No Details

Data Sheet

  • MM32SPIN023C Datasheet (Chinese)
    Chinese 0.9 PDF 1.79MB 2023.09.11

    Description： Supports MM32SPIN023C series, provide detailed specifications, pin definition, electrical characteristics and packaging information.

  • MM32SPIN023C Datasheet (English)
    English 0.9 PDF 1.66MB 2023.09.11

    Description： Supports MM32SPIN023C series, provide detailed specifications, pin definition, electrical characteristics and packaging information.

User Manual

Application Note

Lib Samples

Recommended Tools

  • Motor-DK (MM32SPIN023C)

    Input voltage range: 9V~18V

    Embed pre-driver and 6-way 20V / 2A N-MOS tube

    Embed 3.3V LDO

    Use GBW 10MHz operational amplifiers x2

    Support Sensory/Sensorless, square wave/sine wave drive

    Support 1/2 Shunt R three-phase current sampling

    BEMF voltage feedback

    Supports DC Bus voltage and total current detection

    Use MCU built-in comparator as over-current protection

  • MM32-LINK MINI Emulator

    Support MM32 MCU SWD programming and debugging, compatible with CMSIS-DAP debugging channel

    Support CDC virtual serial port, baud rate support 9600 / 14400 / 19200 / 28800 / 38400 / 56000 / 57600 / 115200 etc

    Support firmware update and function configuration via U-Disk

    Driver-free installation, supports Windows and Linux operating systems

Recommended Software

  • IAR Pack

    When using IAR integrated development environment to develop MM32 microcontroller, you need to install this support package, so that you can select MM32 chip model, debug and download in IAR.

  • KEIL Pack

    When using KEIL integrated development environment to develop MM32 microcontroller, you need to install this support package, so that you can select MM32 chip model, debug and download in KEIL.

  • J-Link Pack

    When using J-Link debuggerto debug MM32 microcontroller or using J-Flash to make programming, this supportpackage needs to be installed to realize the selection of MM32 device in J-Flash; When J-Li...
See More

Target Application

  • Seat ventilation

    Car seat ventilation refers to the ventilation function that can be achieved by designers using a fan to inject air into the seat, in which the air flows out from the small holes on the seat surf...

    Learn More

  • HVAC FLAP

    The heating, ventilation, air-conditioning and cooling (HVAC) system is designed to adjust, heat, cool, ventilate, clean, or dehumidify the indoor air quality (IAQ) in the car. The HVAC system co...

    Learn More

  • Robotics

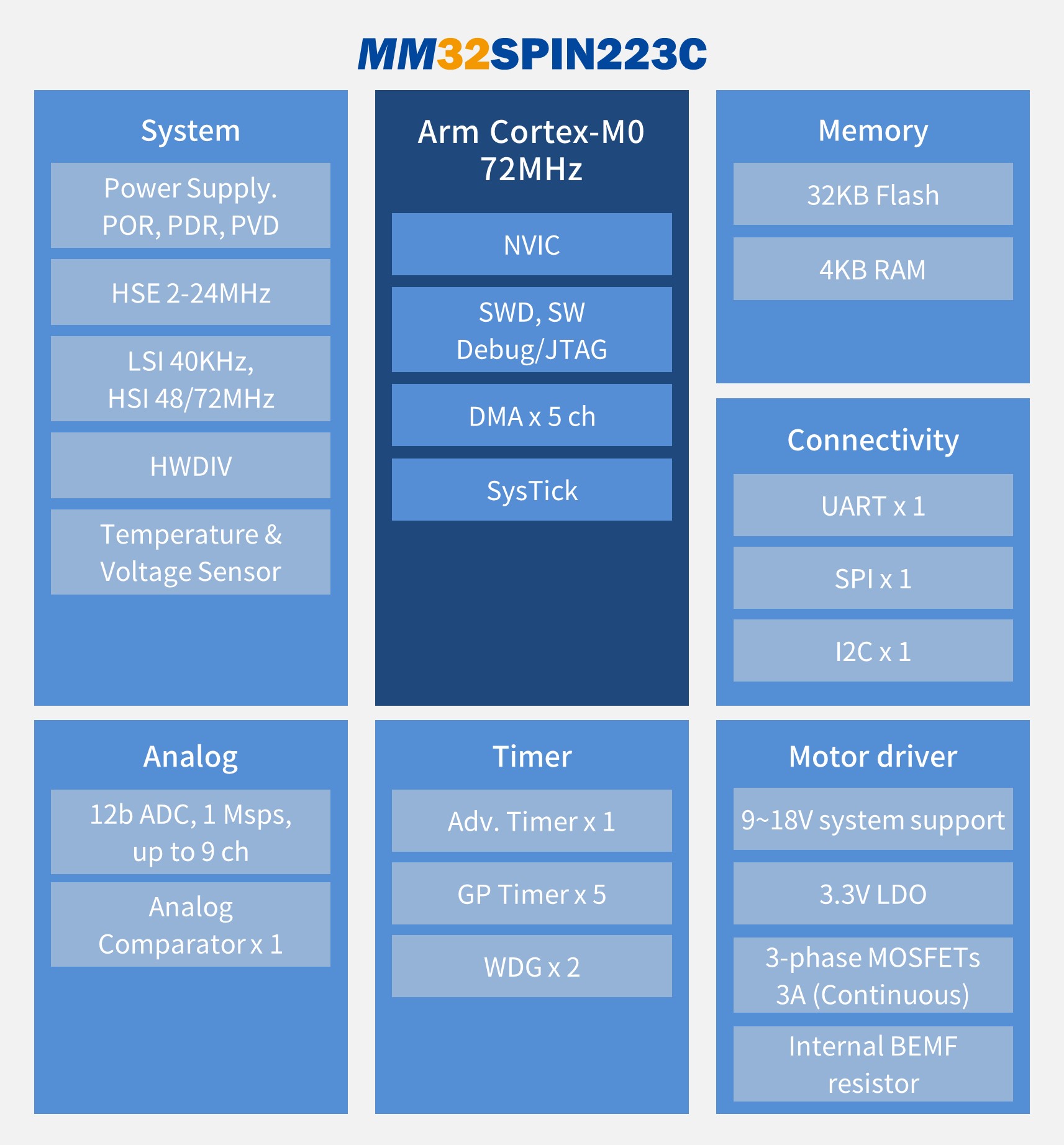

    A small robot has many joint actions and each joint is a control motor. Based on MindMotion’s MM32SPIN223C microcontroller, the motor control takes MM32SPIN023C as the main control.

    Learn More

Selection

Buy

Part No.

Core

Max Speed (MHz)

Flash (KB)

RAM (KB)

I/O#

Advanced TMR

GP TMR

UART

LPUART

I²C

SPI

USB 2.0 FS

CAN 2.0B

Ethernet

ADC (1Msps, 12bit)

ADC (3Msps, 12bit)

DAC (12bit)

ACMP

OpAmp

Pin Counts

Package

Package Size

Operation Temp

样片申请
Agent Channel Link
MM32SPIN023C
M0
60
32
4
14
1
4
1
-
-
1
-
-
-
9ch
-
-
2
2
32
QFN
4X4
-40~105C

Sample Application

Customer Related Information

Sample Related Information
Project Related Information

Agent Related Information

We offer the following online ordering options

MM32F0010

Home > 产品 > MM32F > MM32F Value Line > MM32F0010

Dealer
Stock*
Unit Price
Quantity
1548
$5.25
50
Standard global delivery $4.99
Add To Cart
  • Americas (inventory)
  • EMEA（inventory）
  • Asia（inventory）
  • Japan（inventory）
Dealer
Stock*
1548
Order Now
1548
Order Now
1548
Order Now
1548
Order Now
* The price may change at any time

Product Information

Part No.

Packing

Package Type Package Drawing

MOQ
REACH Declaration
ROHS Declaration
ROHS Report
MSL
Peak Package Body Temperature
MM32SPIN023C
3
260℃
